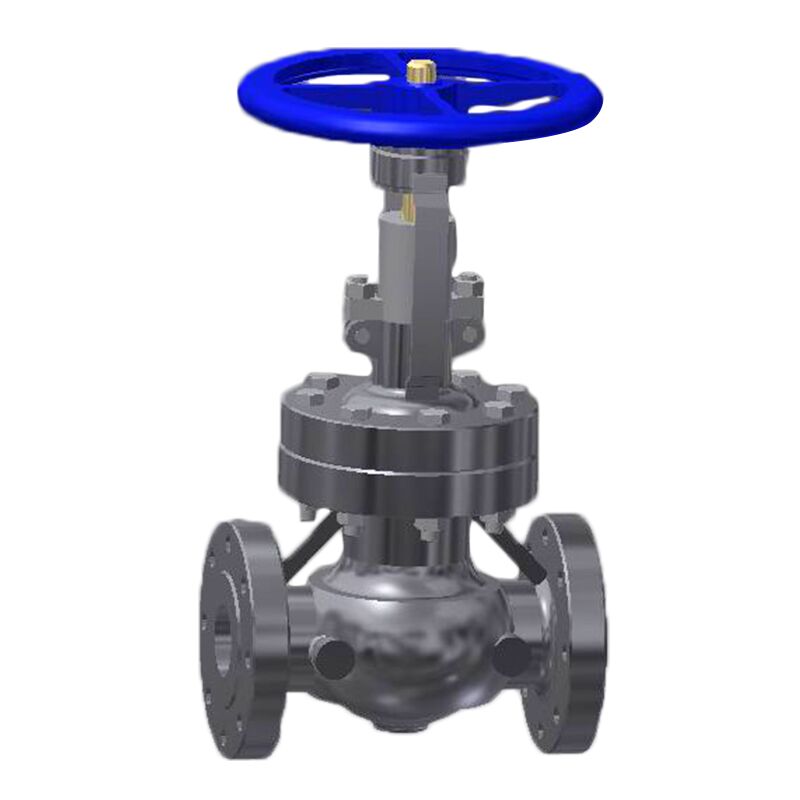

美國MILLER進口法蘭截止閥概述：
美國MILLER進口法蘭截止閥是美國米勒根據ANSI和API標準生產，閥瓣和閥座的密封面采用不同硬度的司太立（Stellite）鈷基硬質合金堆焊而成，密封可靠、硬度高、耐磨、耐高溫、耐腐蝕、抗擦傷性能好、壽命長。
美國MILLER進口法蘭截止閥參數：
公稱通徑：DN15-DN1000
公稱壓力：150LB-2500LB
設計溫度：-29℃-550℃
連接方式：法蘭
適用介質：氣、水、油、蒸汽、燃氣、腐蝕性流體
美國MILLER進口法蘭截止閥部件：
|
零件名稱 |
材質 | ||
|
閥體/閥蓋 |
WCB |
CF8 |
CF3 |
|
閥瓣 |
WCB |
CF8 |
CF3 |
|
閥桿 |
13Cr |
304SS |
316SS |
|
填料 |
柔性石墨 |
PTFE編織 |
PTFE編織 |
|
墊片 |
304L+石墨 |
304L+PTFE |
316L+PTFE |
|
壓蓋 |
WCB |
CF8 |
CF3 |
|
填料壓環 |
WCB |
CF8 |
CF8 |

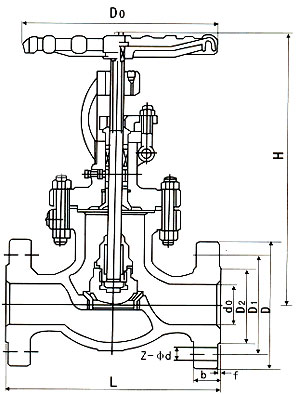

美國MILLER進口法蘭截止閥尺寸：
|
DN |
150Lb | |||||||
|
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
1/2 |
108 |
89 |
60.5 |
35 |
11.2 |
4-16 |
241 |
100 |
|
3/4 |
117 |
98 |
69.9 |
43 |
12.7 |
4-16 |
241 |
100 |
|
1 |
127 |
108 |
79.2 |
51 |
14.2 |
4-16 |
242 |
125 |
|
11/4 |
140 |
117 |
89 |
63 |
16 |
4-16 |
280 |
160 |
|
11/2 |
165 |
127 |
98.6 |
73 |
17.5 |
4-16 |
286 |
160 |
|
2 |
203 |
152 |
120.7 |
92 |
19 |
4-16 |
368 |
200 |
|
21/2 |
216 |
178 |
139.7 |
105 |
22.4 |
4-19 |
387 |
200 |
|
3 |
241 |
190 |
152.4 |
127 |
24 |
4-19 |
411 |
250 |
|
4 |
292 |
229 |
190.5 |
157 |
24 |
4-19 |
454 |
250 |
|
5 |
356 |
254 |
216.0 |
186 |
24 |
8-22 |
455 |
350 |
|
6 |
406 |
279 |
241.3 |
216 |
25.4 |
8-22 |
541 |
350 |
|
8 |
495 |
343 |
298.5 |
270 |
28.4 |
8-22 |
651 |
450 |
|
10 |
622 |
406 |
362.0 |
324 |
30.2 |
12-25.4 |
800 |
450 |
|
12 |
698 |
483 |
431.8 |
381 |
32 |
12-25.4 |
1231 |
600 |
|
14 |
787 |
533 |
476.3 |
413 |
35 |
12-29 |
1450 |
600 |
|
16 |
914 |
597 |
539.8 |
470 |
36.6 |
26-29 |
1645 |
600 |
|
DN |
300Lb | |||||||
|
1/2 |
152 |
95 |
66.5 |
35 |
14.2 |
4-16 |
241 |
140 |
|
3/4 |
178 |
117 |
82.5 |
43 |
16 |
4-19 |
241 |
140 |
|
1 |
203 |
123 |
89 |
51 |
17.5 |
4-19 |
283 |
160 |
|
11/4 |
216 |
133 |
98.5 |
63 |
19 |
4-19 |
320 |
200 |
|
11/2 |
229 |
155 |
114.3 |
73 |
20.6 |
4-22.5 |
322 |
200 |
|
2 |
267 |
165 |
127 |
92 |
22.4 |
8-22.5 |
399 |
200 |
|
21/2 |
292 |
190 |
149.4 |
105 |
25.4 |
8-22.5 |
438 |
250 |
|
3 |
318 |
210 |
168.1 |
127 |
28.4 |
8-22.5 |
464 |
280 |
|
4 |
356 |
254 |
200.2 |
157 |
31.8 |
8-22.5 |
565 |
350 |
|
5 |
400 |
279 |
235 |
186 |
35 |
8-22.5 |
614 |
350 |
|
6 |
444 |
318 |
269.7 |
216 |
36.6 |
12-25.4 |
717 |
400 |
|
8 |
559 |
381 |
330.2 |
270 |
41.2 |
12-25.4 |
930 |
500 |
|
10 |
622 |
444 |
387.4 |
324 |
47.8 |
16-28.5 |
1012 |
550 |
|
12 |
711 |
521 |
450.8 |
381 |
50.8 |
16-32 |
1231 |
600 |
|
14 |
762 |
584 |
514.4 |
413 |
54 |
20-32 |
1450 |
600 |
|
16 |
864 |
648 |
571.5 |
470 |
57.2 |
20-35 |
1645 |
600 |
|
DN |
600Lb | |||||||
|
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
1/2 |
165 |
95 |
66.5 |
35 |
14.5 |
4-16 |
285 |
100 |
|
3/4 |
190 |
117 |
82.5 |
43 |
16 |
4-19 |
285 |
125 |
|
1 |
216 |
124 |
89 |
51 |
17.5 |
4-19 |
313 |
160 |
|
11/4 |
229 |
133 |
98.5 |
63 |
21 |
4-19 |
328 |
160 |
|
11/2 |
241 |
156 |
114.3 |
73 |
22.5 |
4-22.5 |
365 |
180 |
|
2 |
292 |
165 |
127 |
92 |
33 |
8-19 |
444 |
200 |
|
21/2 |
330 |
190 |
149.4 |
105 |
36 |
8-22.5 |
483 |
250 |
|
3 |
356 |
210 |
168.1 |
127 |
39 |
8-22.5 |
533 |
250 |
|
4 |
432 |
273 |
216 |
157 |
45 |
8-25.4 |
622 |
350 |
|
5 |
508 |
330 |
266.7 |
186 |
52 |
8-28.5 |
750 |
350 |
|
6 |
559 |
356 |
292.1 |
216 |
55 |
12-28.5 |
800 |
450 |
|
8 |
660 |
419 |
349.3 |
270 |
63 |
12-32 |
927 |
500 |
|
10 |
787 |
508 |
431.8 |
324 |
71 |
16-35 |
1257 |
600 |
|
12 |
838 |
559 |
489 |
381 |
74 |
20-35 |
1468 |
680 |
實際尺寸以代理商提供為準，更多尺寸請與代理商聯系
